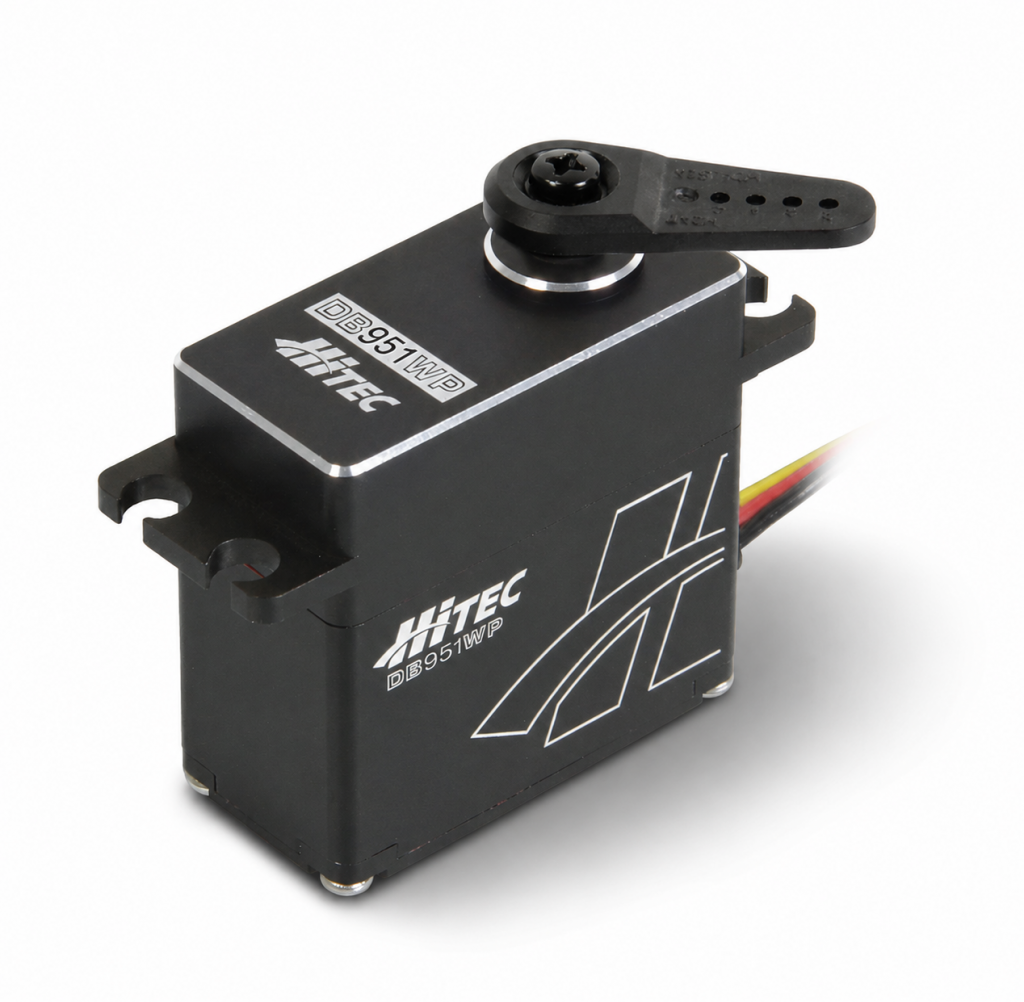

Built with a torsionally stiff structure, the DB951WP is engineered for high-load applications where speed, strength, and accuracy are critical. Hardened steel gears, an ultra-efficient brushless motor, and a CNC-machined aluminum housing provide exceptional durability and consistent performance, even in harsh operating environments. The waterproof enclosure, machined from solid aluminum billet, ensures long-term reliability under demanding conditions.

Delivering up to 38.0 kgf·cm of torque and an extremely fast response time of just 0.10 seconds per 60° at 7.4 volts, this servo is designed for commercial and industrial systems that require rapid movement combined with precise positioning. Its optimized gear ratio enhances responsiveness while maintaining excellent control, making it ideal for applications where both speed and accuracy are essential.

Key Features

• CNC-machined, all-aluminum housing for maximum rigidity

• 25-tooth output spline compatible with industry-standard servo horns

• High-speed servo with hardened steel gear train

• Energy-efficient brushless motor technology

• Dual ball bearings supporting the output shaft

• Fully programmable digital amplifier

• IP67-rated waterproof construction

• High-speed gear ratio variant based on the DB961WP platform

Specifications

• 6-7,4 V
• max. 372,7 N/cm
• max. 0,1 sec/60°
• IP67
