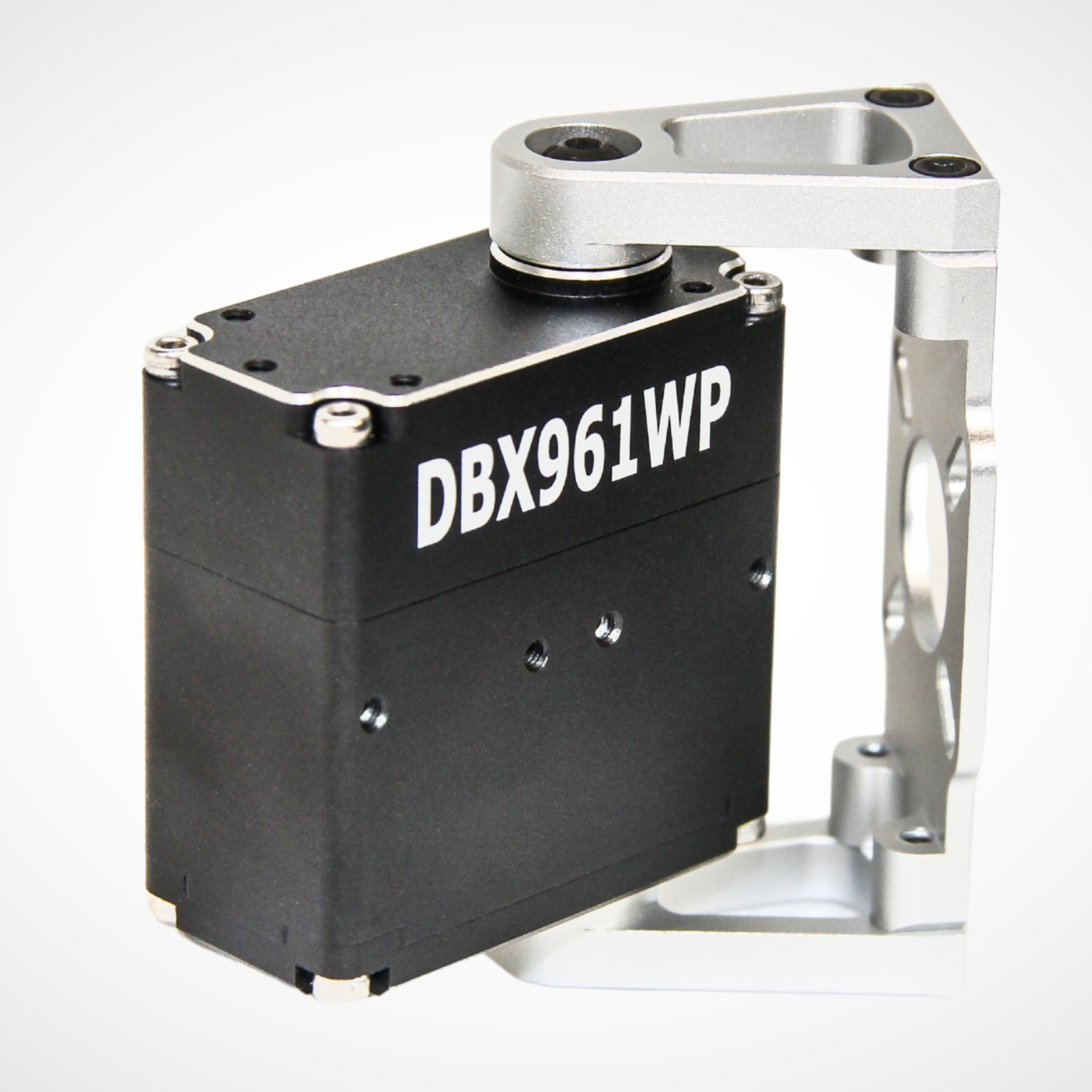

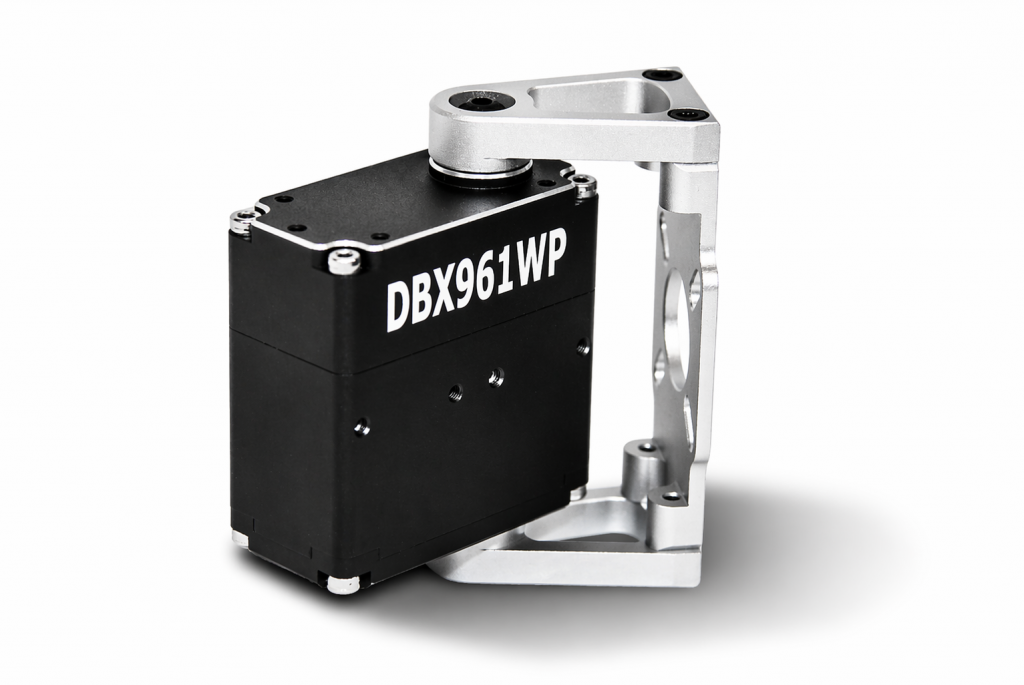

Designed for demanding robotic and UAS applications, the DBX961WP combines hardened steel gearing, dual ball bearings, and a robust aluminum alloy housing for exceptional strength and reliability. Equipped with a bearing-supported axial robot bracket, this high-performance servo delivers the power and precision required for advanced industrial, robotic, and aerial systems.

Controlled via a PWM/TTL interface, the servo operates within a pulse width range of 900–2100 μs (center:1500 μs) and offers a programmable travel of up to 260° of rotation. This makes it an ideal solution for articulated robotic joints, arms and legs, as well as tilt-wing and tilt-rotor VTOL drones and unmanned aircraft.

An ultra-efficient brushless motor ensures smooth, responsive operation, while the IP67 waterproof rating guarantees dependable performance in harsh environments. Built for long service life and consistent output, the DBX961WP stands out as a military-grade servo choice for professional UAS developers, robotics engineers, and animatronics specialists.

Key Features

• Bearing-supported axial robot mounting bracket

• Optimized for operation with up to 2S LiPo batteries

• High-efficiency brushless motor

• Fully programmable functionality

• Adjustable operating range up to 260°

• IP67-rated waterproof construction

• Smart Sense technology for servo monitoring and analytics

• H25T industry-standard output spline

Specifications

• 6-7,4 V
• max. 539,6 N/cm
• max. 0,15 sec/60°
• IP67
