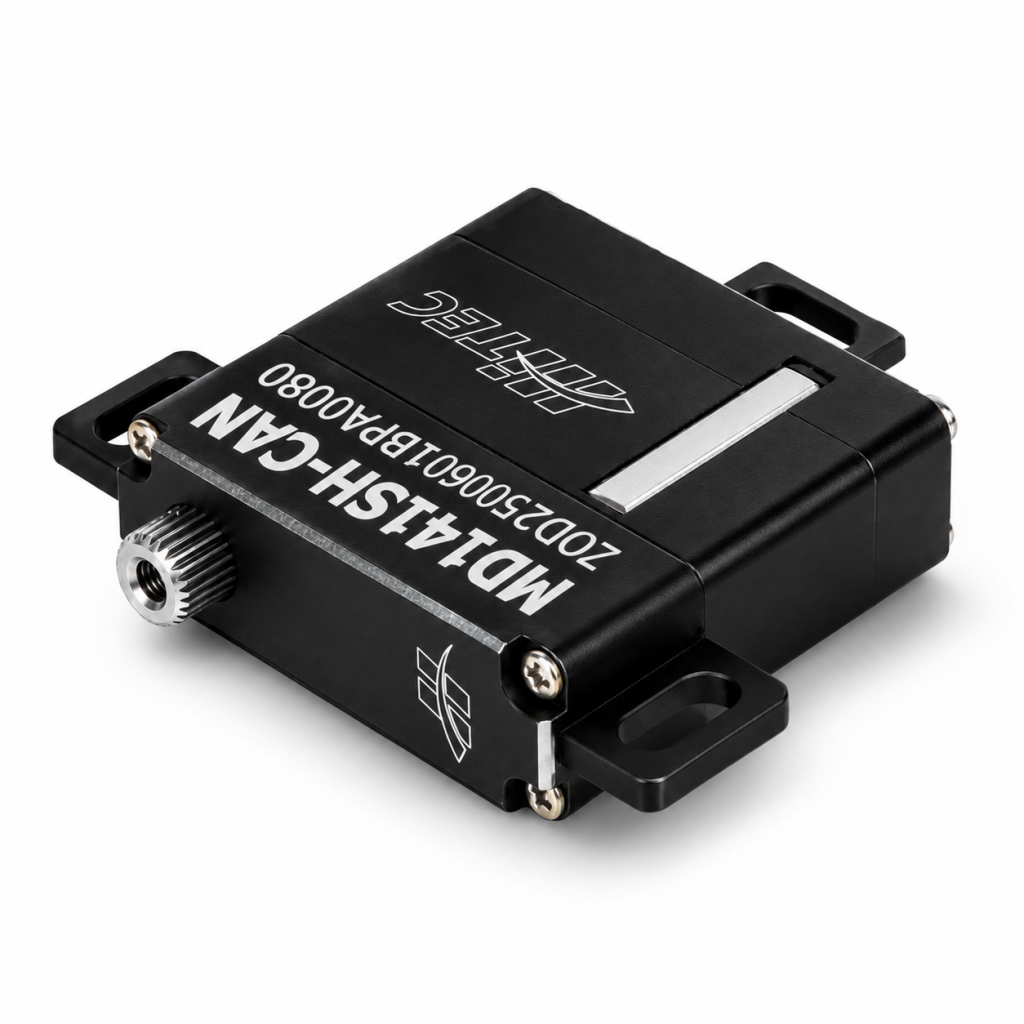

We are pleased to introduce the new HiTEC MD141SH-CAN – a compact digital servo designed for professional UAV platforms and other lightweight precision motion control applications.

Combining a slim-wing form factor with CAN 2.0A/B communication, a coreless motor, contactless magnetic encoder, and a 32-bit programmable digital amplifier, the MD141SH-CAN delivers up to 68.65 N·cm (7.0 kgf·cm) torque and 0.10 s/60° speed for smooth, accurate positioning. Its hybrid metal/steel geartrain, aluminum housing, dual ball bearings, and IP4X-rated design ensure reliable performance in demanding environments.

The MD141SH-CAN is perfectly suited for aileron and flap control surfaces, thin horizontal and vertical stabilizers, miniature pan-tilt camera gimbals, antenna tracking systems, and payload deployment mechanisms requiring continuous position feedback.

Specifications

• Operating Voltage: 4.0–8.4 V
• Maximum Torque: 68.65 N·cm (7.0 kgf·cm)
• Transit Speed: max. 0.10 sec / 60°
• Protection Class: IP4X

Key Features

• Dimensions: 30.0 × 10.0 × 29.5 mm
• Coreless DC motor
• Contactless magnetic encoder for precise positioning and feedback
• 32-bit programmable digital amplifier
• Hybrid metal/steel geartrain
• Aluminum housing
• Dual ball bearings
• CAN 2.0A/B communication or PWM / TTL
• Weight: 27 g
