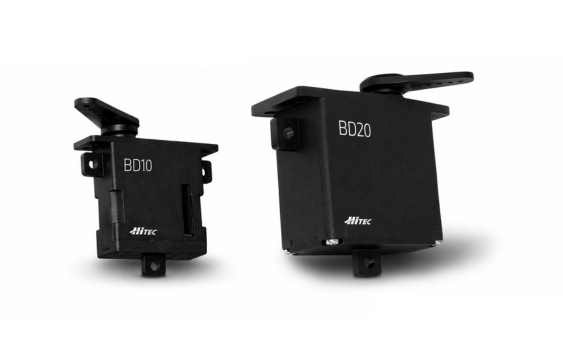

NEW BD Series
Brushless Drone Servo Motors: BD10 and BD20 COMING SOON
Motion for demanding drone environments – Meet Hitec’s two NEW BD (Brushless Drone) Series Servo Motors
With the two distinct servo solutions BD10 and BD20, you get two ultra-light and powerful servo motors optimized for very different mission profiles even though they share the same core DNA – brushless drive, contactless magnetic encoder, and DroneCAN / CAN control.
Weighing just 11.8 g, the BD10 delivers precise motion and fast response in weight-critical drone applications. It combines a compact footprint with high efficiency and advanced case and gear materials that provide outstanding heat resistance, mechanical strength, and chemical durability. These material properties ensure reliable operation even in harsh and challenging environments.
The BD20 on the other hand, weighing 70.0g, is built for maximum torque with more than twenty times the stall torque of the BD10. Designed for harsh operating conditions, it’s exceptionally robust due to its hardened steel geartrain. An IP67 rating provides full protection against dust and water ingress.
Both servo solutions offer an innovative servo platform, covering everything from lightweight precision motion to high-torque, mission-critical actuation. This makes the BD series a flexible solution for modern UAV systems with varying performance and environmental requirements.
Specifications
BD10-CAN
- 4-8,4 V
- max. 27,5 N/cm
- max. 0,09 sec/60˚
- IP4X
BD20-CAN
- 4-8,4 V
- max. 559,0 N/cm
- max. 0,15 sec/60˚
- IP67

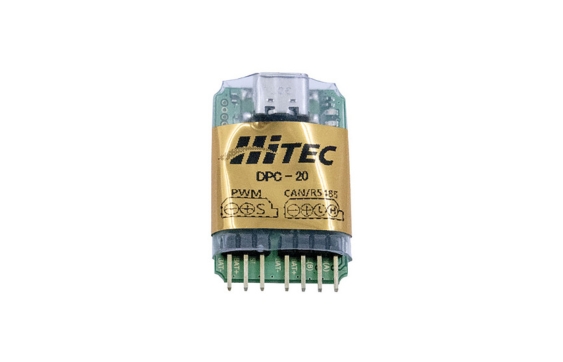

NEW DPC-20 Servo Programmer
All-in-One Servo Programmer
With the HiTEC DPC-20 Servo Programmer, HiTEC introduces a future-proof solution for configuring and managing digital servos. Featuring a USB-C connection and a fully web-based user interface, the DPC-20 requires no driver installation or local software. This eliminates common compatibility issues and ensures continued functionality even after Microsoft updates.
The web-based platform automatically provides access to the latest features, updates, and security enhancements.
All standard DPC programming functions are available through a clear and intuitive interface, including: End Point Adjustments, Direction, Fail Safe, Dead Band, Speed (Slower), Soft Start Rate, Overload Protection, Data Save / Load, Program Resett
Important Technical Information
Hardware type: PC USB-C interface to 3-pin (PWM/TTL) and 4-pin (RS-485/CAN) connections
Functionality: Configuration and testing of HITEC digital servo actuators
Protocol support: PWM, RS-485, CAN, and DroneCAN for maximum flexibility
Software note: Different servo actuator series require dedicated user interfaces due to variations in communication protocols
Power supply:
Servo actuators from the 5/7 Series, 9 Series, and D/MD Series must be connected to the 3-pin port
External power must be supplied via the BAT- and BAT+ pins on the 4-pin port, observing correct polarity
Detailed wiring diagrams can be found in the Operating Instructions.

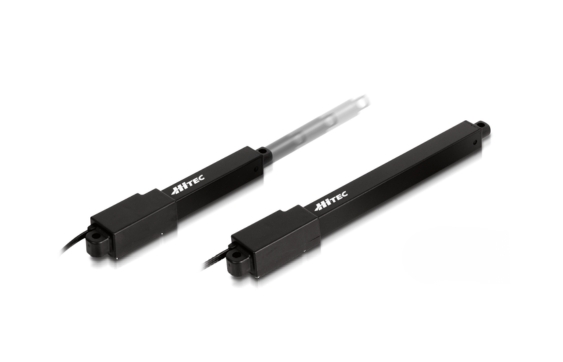

NEW Linear CAN Series
Precision Linear Motion with CAN & DroneCAN Control
HiTEC expands its actuator portfolio with the new LINEAR CAN Series Servos, a versatile range of high-performance linear actuators designed for precise, powerful, and scalable motion control. Featuring variable stroke lengths, multiple gear ratios, and a robust 5 mm lead screw, these actuators deliver exceptional positioning accuracy across a wide range of professional applications.
Controlled via CAN 2.0A/B and the DroneCAN servo protocol, the LINEAR CAN Series enables real-time communication between system components, ensuring high interoperability and seamless system integration. With 12 configuration options available, users can select the ideal combination of stroke length and gear ratio to match their exact requirements — from compact, low-profile installations to applications demanding extended linear travel.
The LINEAR CAN Series is widely suited for robotics, animatronics, drones, and industrial mechanical systems. Advanced features such as programmable stroke and speed settings, power-off position stability, and multiple mounting options provide outstanding flexibility and functional reliability, even in demanding environments.
Key Features
Wide operating voltage range: 4.0 – 8.4 V DC
Programmable CAN / DroneCAN digital amplifier
(compatible with HiTEC’s DPC-20 Programmer)5 mm lead screw for smooth and precise linear motion
Three stroke options: 30 mm, 50 mm, 100 mm
Four gear ratios: 50:1, 100:1, 210:1, 380:1
With the LINEAR CAN Series, HiTEC delivers a future-ready linear actuator solution that combines precision engineering, intelligent communication, and application-driven flexibility.

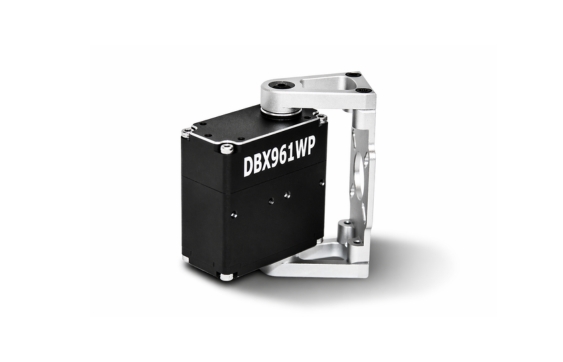

NEW DBX961WP
20mm, Digital, Brushless, IP67, Steel Gear
Designed for demanding robotic and UAS applications, the DBX961WP combines hardened steel gearing, dual ball bearings, and a robust aluminum alloy housing for exceptional strength and reliability. Equipped with a bearing-supported axial robot bracket, this high-performance servo delivers the power and precision required for advanced industrial, robotic, and aerial systems.
Controlled via a PWM/TTL interface, the servo operates within a pulse width range of 900–2100 μs (center:1500 μs) and offers a programmable travel of up to 260° of rotation. This makes it an ideal solution for articulated robotic joints, arms and legs, as well as tilt-wing and tilt-rotor VTOL drones and unmanned aircraft.
An ultra-efficient brushless motor ensures smooth, responsive operation, while the IP67 waterproof rating guarantees dependable performance in harsh environments. Built for long service life and consistent output, the DBX961WP stands out as a military-grade servo choice for professional UAS developers, robotics engineers, and animatronics specialists.
Key Features
-
Bearing-supported axial robot mounting bracket
-
Optimized for operation with up to 2S LiPo batteries
-
High-efficiency brushless motor
-
Fully programmable functionality
-
Adjustable operating range up to 260°
-
IP67-rated waterproof construction
-
Smart Sense technology for servo monitoring and analytics
-
H25T industry-standard output spline
Specifications
- 6-7,4 V
- max. 539,6 N/cm
- max. 0,15 sec/60°
- IP67

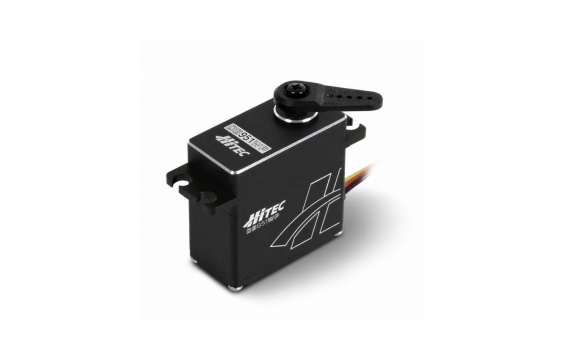

NEW DB951WP
20mm, Digital, Brushless, IP67, High Speed, Hardened Steel Gear
Built with a torsionally stiff structure, the DB951WP is engineered for high-load applications where speed, strength, and accuracy are critical. Hardened steel gears, an ultra-efficient brushless motor, and a CNC-machined aluminum housing provide exceptional durability and consistent performance, even in harsh operating environments. The waterproof enclosure, machined from solid aluminum billet, ensures long-term reliability under demanding conditions.
Delivering up to 38.0 kgf·cm of torque and an extremely fast response time of just 0.10 seconds per 60° at 7.4 volts, this servo is designed for commercial and industrial systems that require rapid movement combined with precise positioning. Its optimized gear ratio enhances responsiveness while maintaining excellent control, making it ideal for applications where both speed and accuracy are essential.
Key Features
CNC-machined, all-aluminum housing for maximum rigidity
25-tooth output spline compatible with industry-standard servo horns
High-speed servo with hardened steel gear train
Energy-efficient brushless motor technology
Dual ball bearings supporting the output shaft
Fully programmable digital amplifier
IP67-rated waterproof construction
High-speed gear ratio variant based on the DB961WP platform
Specifications
- 6-7,4 V
- max. 372,7 N/cm
- max. 0,1 sec/60°
- IP67

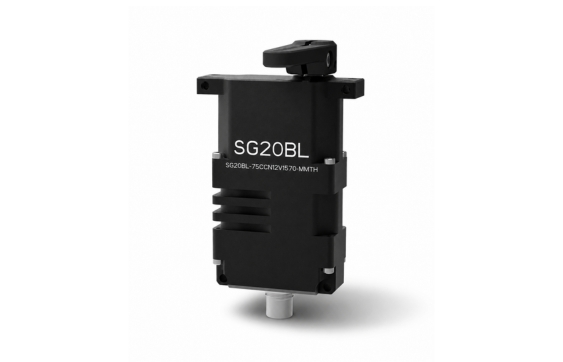

NEW SG20BL-CAN
20mm, Brushless, IP68, High Torque Actuator with M8 Circular Connector (12V)
The SG20BL is built for demanding environments, featuring hardened steel gears, a rugged M8 circular connector, and an IP68-rated housing for maximum durability. With an MTTF (Mean Time to Failure) exceeding 1,000 hours, it ensures reliable long-term operation. Available in 12 V and 24 V variants with wide input voltage ranges, the servo uses an ultra-efficient brushless motor and a contactless magnetic encoder for high performance and fast response. CAN 2.0A/B and DroneCAN support enable seamless integration into advanced unmanned systems.
Key Features
MTTF (Mean Time to Failure): over 1,000 operating hours
Compact 20 mm housing
SG20BL-CAN operating voltage:
12 V systems: 9.0–15.0 V
24 V systems: 18.0–32.0 V
Communication protocol: CAN 2.0A/B and DroneCAN compatible
M8 circular connector interface
High-efficiency brushless motor with hardened steel gear train
IP68-rated environmental protection
Mounting tray and two servo horns supplied
Specifications
- 9-15 V
- max. 637,4 N/cm
- max. 0,13 sec/60°
- IP68
